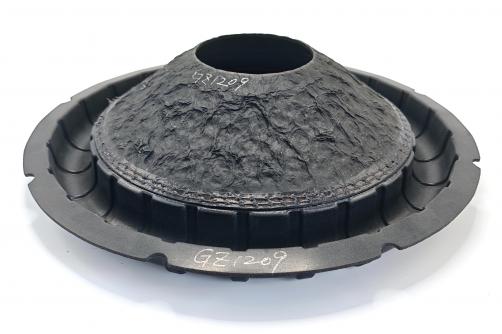

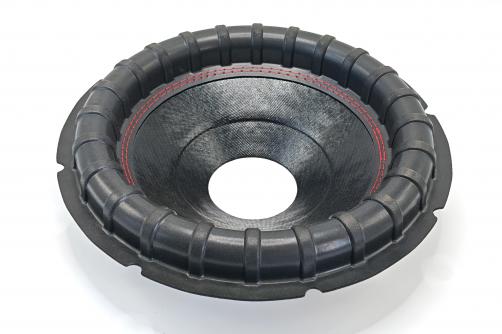

GZ1209: 12″ Non Press Paper Subwoofer Cone with decorative stripes surround 3″ VCID
As the best China 3''VCID Sub cone,decorative stripes foam surround,12'' Subwoofer Cone supplier,Shanghai Chenbao Audio Co.,Ltd. provides quality 3''VCID Sub cone,decorative stripes foam surround,12'' Subwoofer Cone to global clients
Video
  • Technical Data

Description

GZ1209      12 '' Non Press Paper Subwoofer Cone with decorative stripes foam surround

Item No

GZ6505

GZ0802

GZ1004

GZ1209

GZ1512

Size

6.5''

8''

10''

12''

15''

Outer diameter

165  mm

202  mm

252  mm

306   mm

377  mm

Voice coil opening

39.8mm (1.5'')

62mm (2.5'')

78mm (3'')

78mm (3'')

78mm (3'')

Effective height

26.5  mm

32 mm

39  mm

53.5   mm

77  mm

Surround material

Foam  (Red Stitch)

Foam  (Red Stitch)

Foam  (Red Stitch)

Foam  (Red Stitch)

Foam  (Red Stitch)

Surround size

W X H:  15*15  mm

W X H:   25*23 mm

W X H:  30*27 mm

W X H:  30*28  mm

W X H:  34*28 mm

Cone body material

Non pressed paper

Non pressed Paper

Non pressed Paper

Non pressed Paper

Non Press Paper

Dust cap notch

74 mm

94  mm

120 mm

130 mm

150 mm
